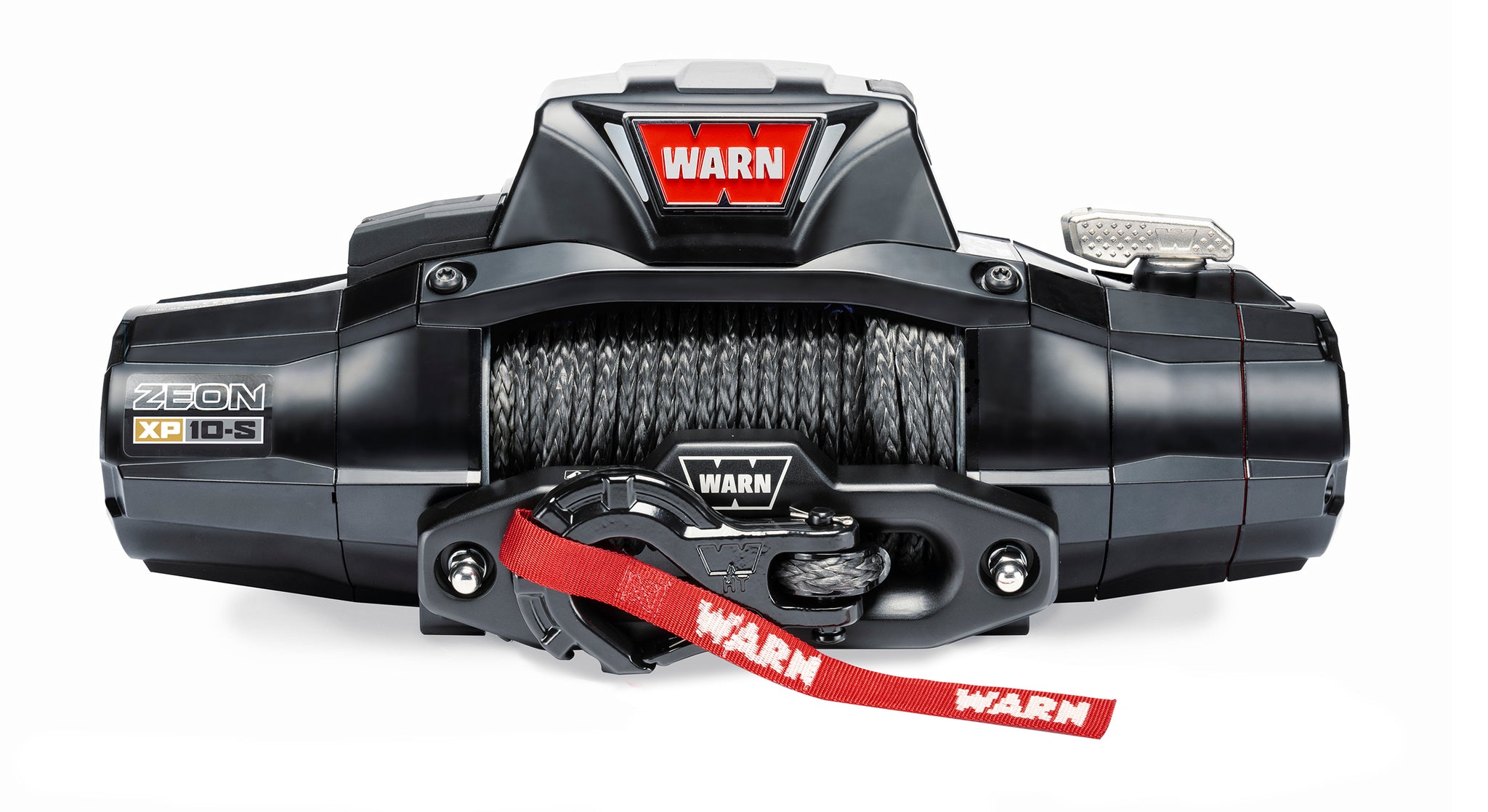

WARN ZEON XP 10-S 12V Winch -Synthetic Rope
| Part number: | ZEON-XP-10-S-110100 |
| Dust & water rating: | IP68/IP69K |
| Fairlead: | Hawse |
| Rated line Pull: | 10000lb (4536kg) single line |

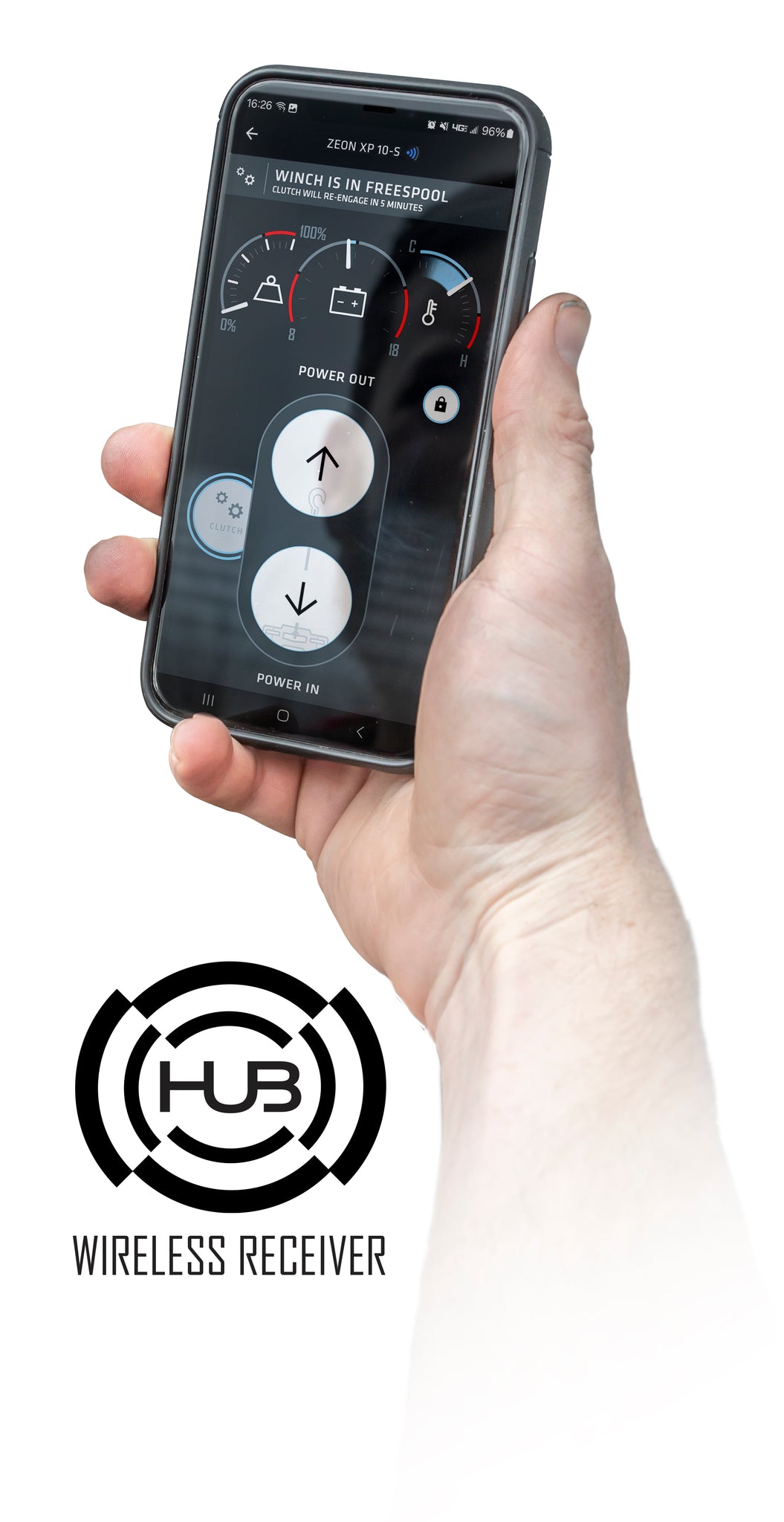

| Wireless Control: | Hub wireless receiver included |
| Motor: | Series Wound |
| Recommended battery: | 650CA minimum for winching |

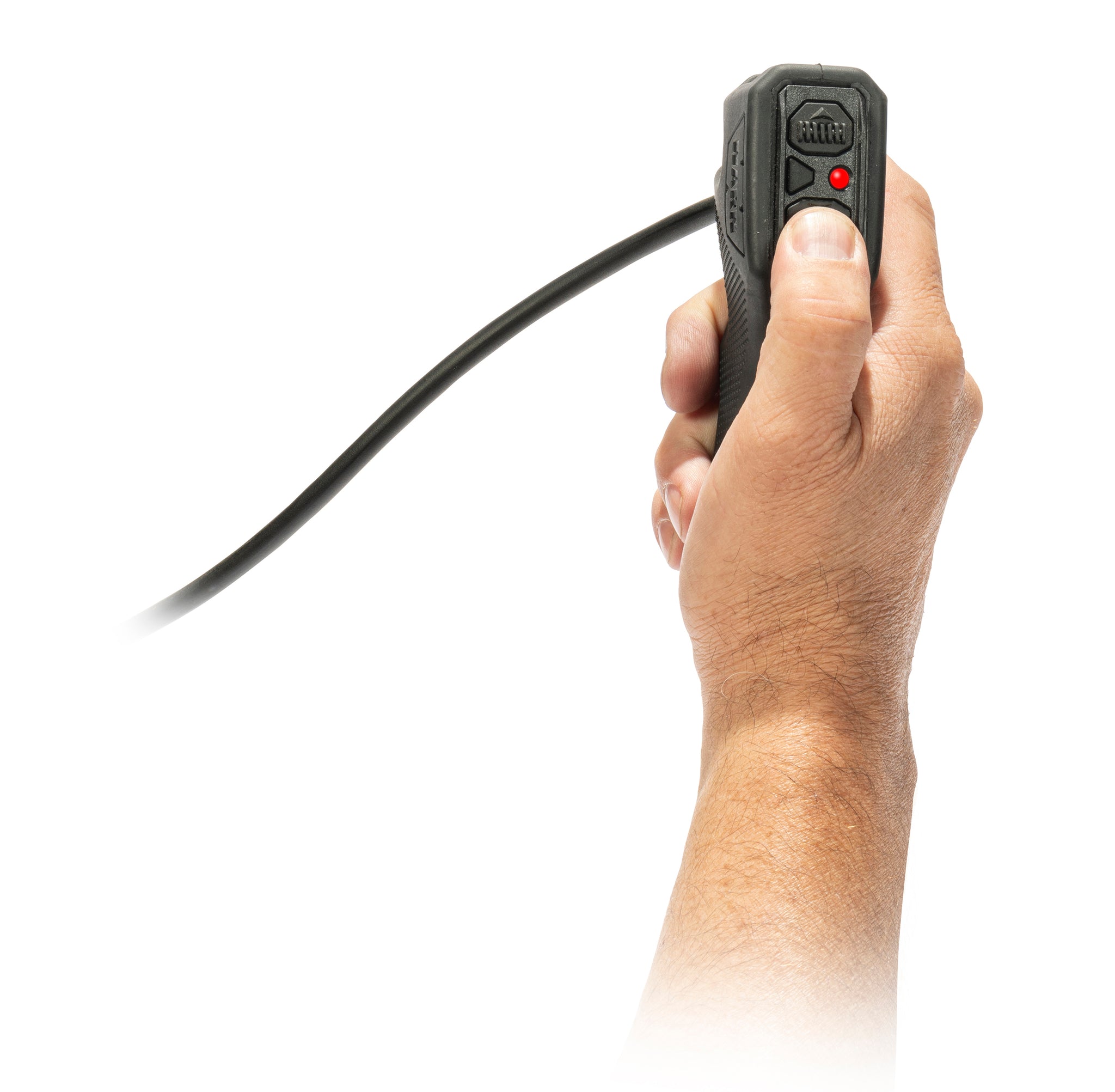

| Control: | Pendant 12' (3.7M) lead |
| Battery leads: | #2 gauge, 72" (1.83M) |
| Gear train: | 3 Stage Planetary |
| Gear ratio: | 141:1 |
| Finish: | Satin Black Powder coated |
| Weight: | 32kgs |
| Clutch: | Rotating ring gear. Manual and remote actuated |
| Bolt pattern: | 10"x 4.5" (254mm x 114.3mm) |
| Brake: | Automatic mechanical cone |
| Overall dimensions (LxWxH): | 23.89" x 7.1"x 10.52" (606.7mm x181mm x 267.2mm) |
| Drum size: | 3.15"x 9.0" (80mm x 229mm) |
| Cable type: | Synthetic Rope-Spydura |
| Cable: |
9.5mm x 30M |
